LED Panel Light Round

LED Panel Light Round

Model: JL-TD005W24A
Name:LED Panel Light Round
Payment: FOB Shunde
Warranty: 3 years

LED Panel Light Round

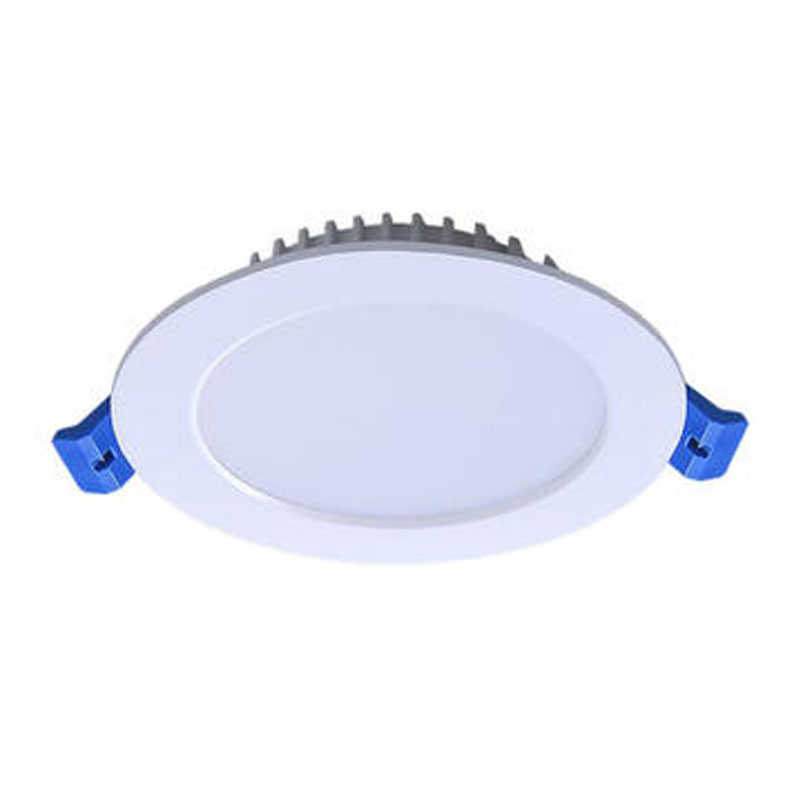

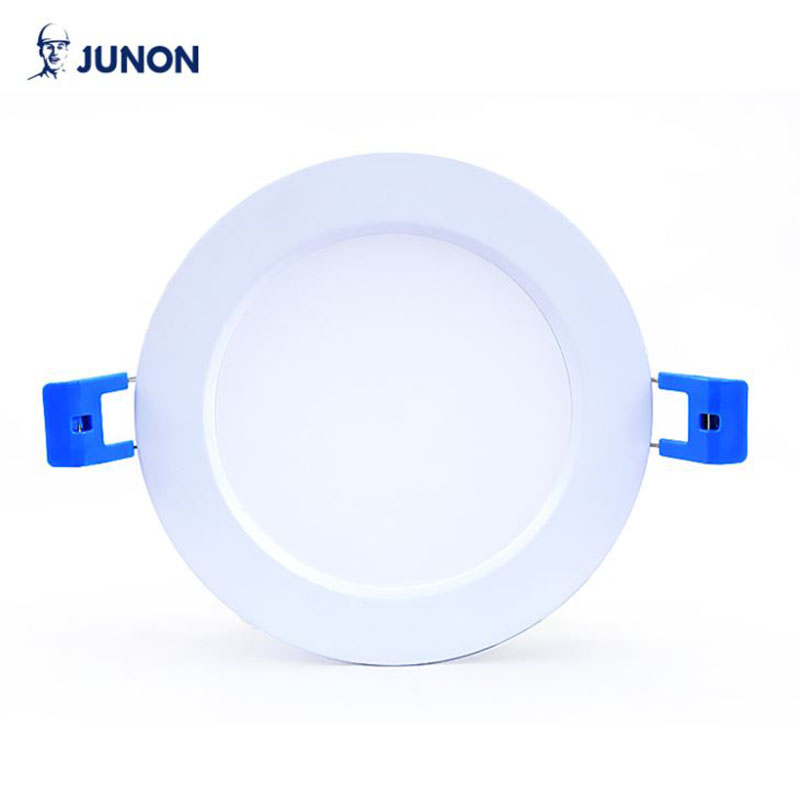

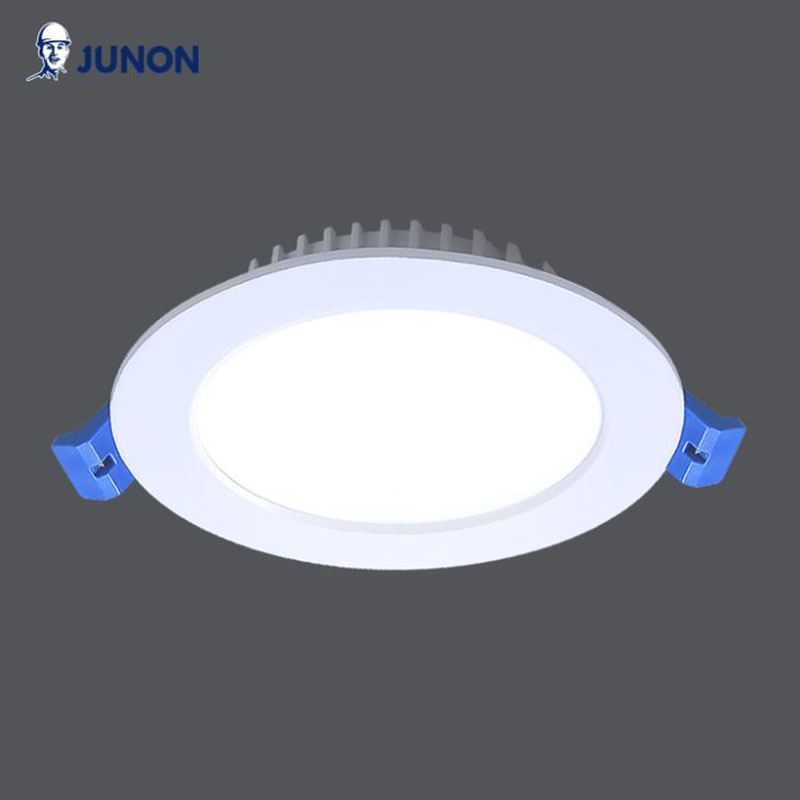

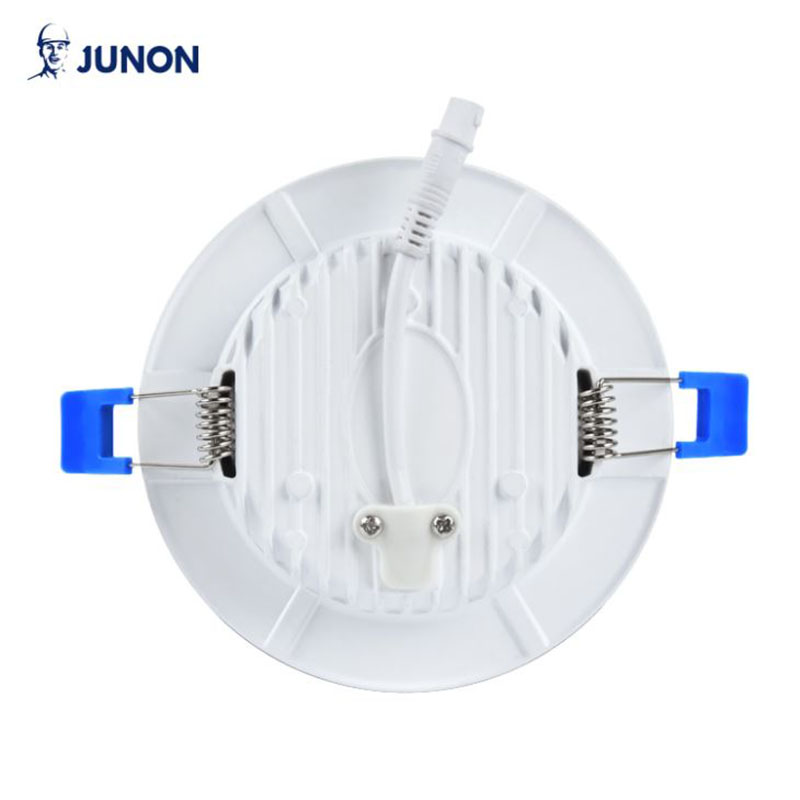

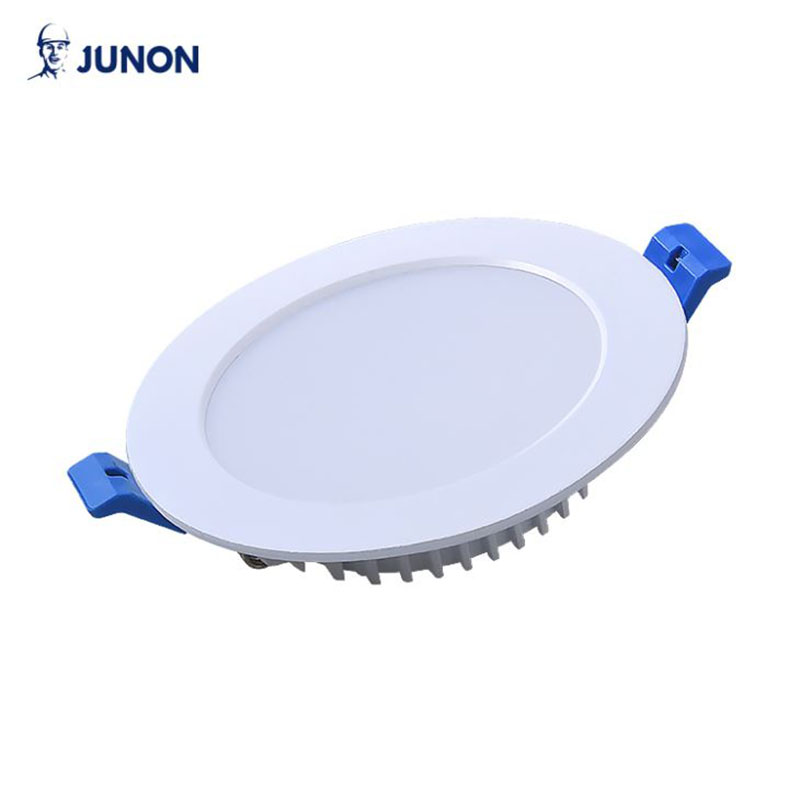

Recess mounted slim circular type LED panel with die cast aluminium housing and smooth powder coated finish with anti glare UV stabilized diffuser and separate energy efficient

electronic driver.

Product Specification
1. Input Voltage: AC220-240V, 50/60Hz
2. Operating voltage range: 100-300V
3. High-Performance electronic driver ensure Zero Maintenance
4. High Surge Protection: 2.5KV
5. Average Life L70B50: 25000 Hrs
6. High Quality polycarbonate frosted diffuser for glare-free uniform lighting distribution.
7. No harmful UV & IR radiations
8. Operating Temperature: -10°C to +45°C

Application Areas
1. Residences
2. Corporate Offices

3. Museums
4. Retail Stores
5. Shopping Malls
6. Airport Lounges Restaurants
7. Hotels


Wattage Name CCT Lumen output DIMENSION Cutout (mm) Product Code

LED Panel Light Round

3000K       4000K       6000K >330lm Ø100x23mm Ø75-85mm JL-TD005W24A
9W   >600lm  Ø120x25mm Ø90-100mm JL-TD009W24A
13W   >860lm Ø146x25mm Ø115-125mm JL-TD013W24A
18W   >1200lm Ø185x27mm Ø140-155mm JL-TD018W24A
24W   >1600lm Ø230x27mm Ø190-205mm JL-TD024W24A


Reasons You Choose JUNON LED Panel Light Round
1) Streamline configuration, graceful appearance combine with the city street environment well;
2) Die-cast aluminium alloy(DC12/24V) housing guarantees its high soundness;
3) Project rectangular light spot with bat-wing distribution curve flux and keep good light evenness within 40m distant;
4) Excellent heat radiation character reach a temperature raise below 23K;
5) Tool free for maintenance ,easy to install it;
6) Horizontal or vertical installation are available;
7) Well power supply
8) Superior tempered glass diffuser has a good light transmittance and invariant color;
9) Long life power driver ensures above 50000 hours use-life and has short,open-circuit and over-heat protection.
10) Our products have CE-EMC, CE-LVD, ROHS, C-TICK, EN62471 and etc. certifications.
11)  3 years warrantee from the time we make delivery, the longest guaranty in the market.
12) MOQ: 1pc. Anyway small order or big order
13) Ability of production: we have done a project with 12000sets: only 3 months for delivery. For sample: within 3 working days, for normal order: within 10 working days.
14) Customized products are welcome, OEM, ODM service is accepted.
15) Free customized packing box, with your company logo, slogan etc.

Should you're interested in our LED Panel Light Round, if you have any demands, welcome to contact us freely !
