MCB DISTRIBUTION BOARD|mcb electrical distribution board
Model No.: V16MCB-2X13
Material: Iron sheet
MOQ: 500 pcs
Payment Terms: T/T
Material: Iron sheet
MOQ: 500 pcs
Payment Terms: T/T
What is MCB Distribution board?

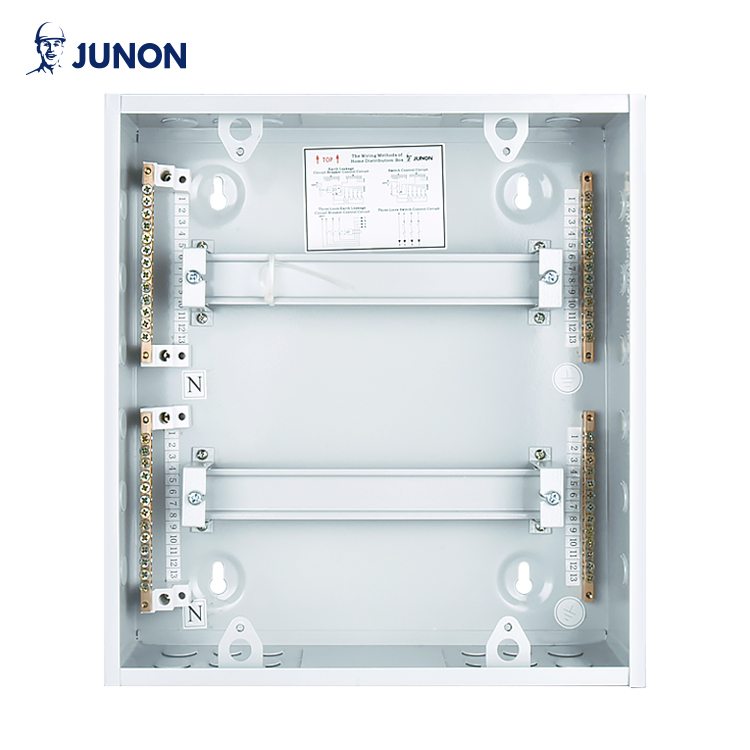

A MCB distribution board (DB) is where the electrical supply is distributed from within the building. The interior of the distribution board is pre-fitted with a clip tray or DIN rail for mounting the miniature circuit breakers (MCB) and other devices.
How does it work?
A distribution board is a component of an electricity supply system which divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit, in a common enclosure.

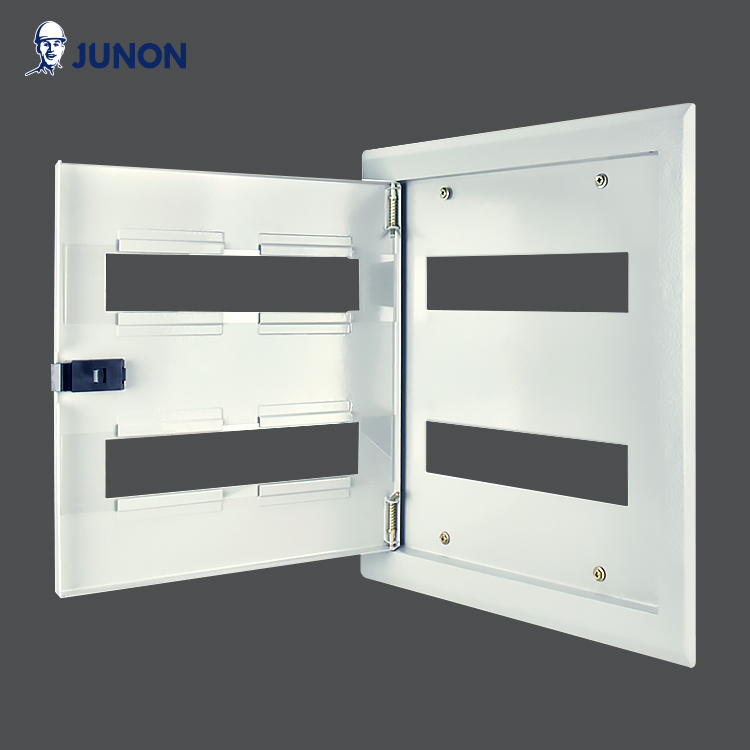

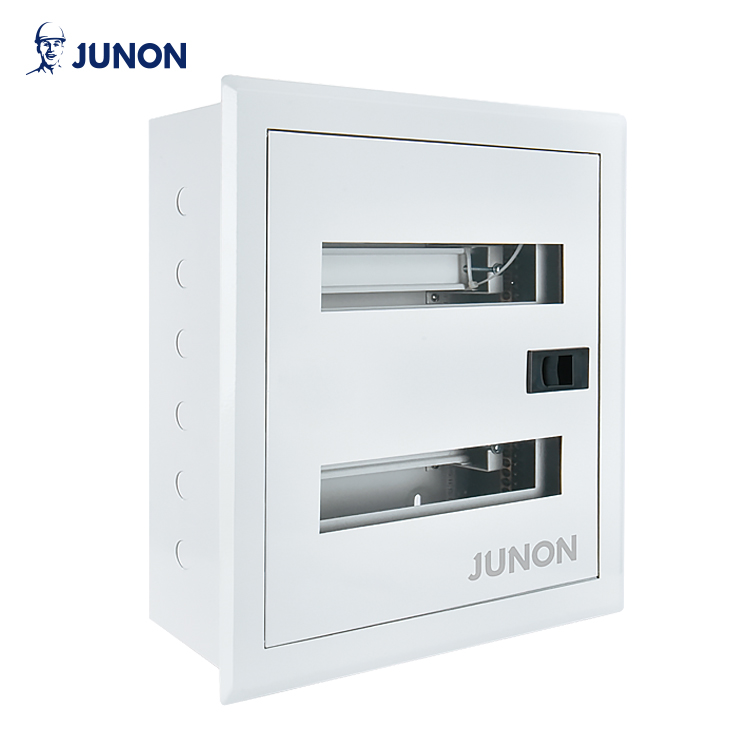

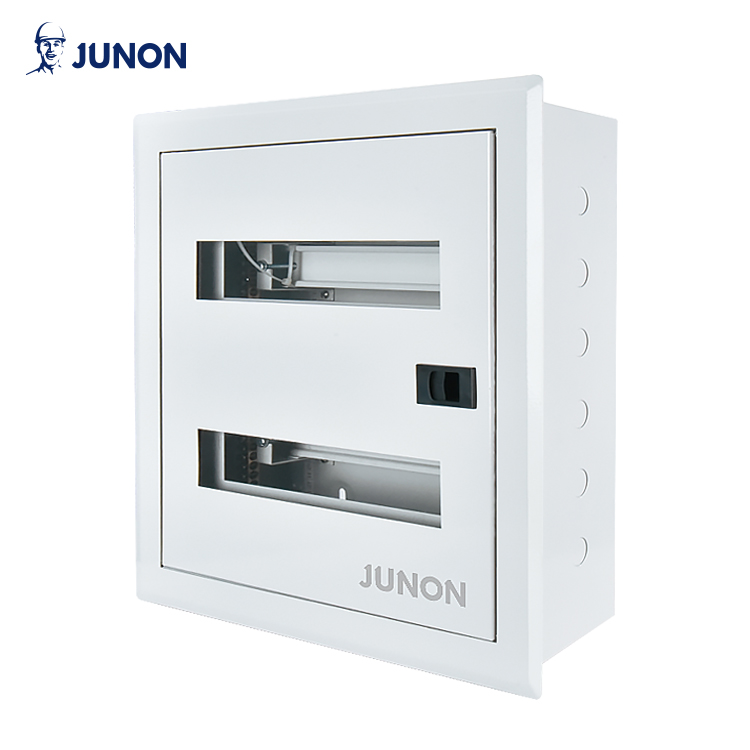

Product Images:
Basic Info.
Product Code: V16MCB-2X13
Series: V16 series
Other sizes: 1X13,3X13,4X13,1X18,2X18,3X18,4X18
Shell Material: Steel Plate
Base Material: Cold Rolled Steel Plate

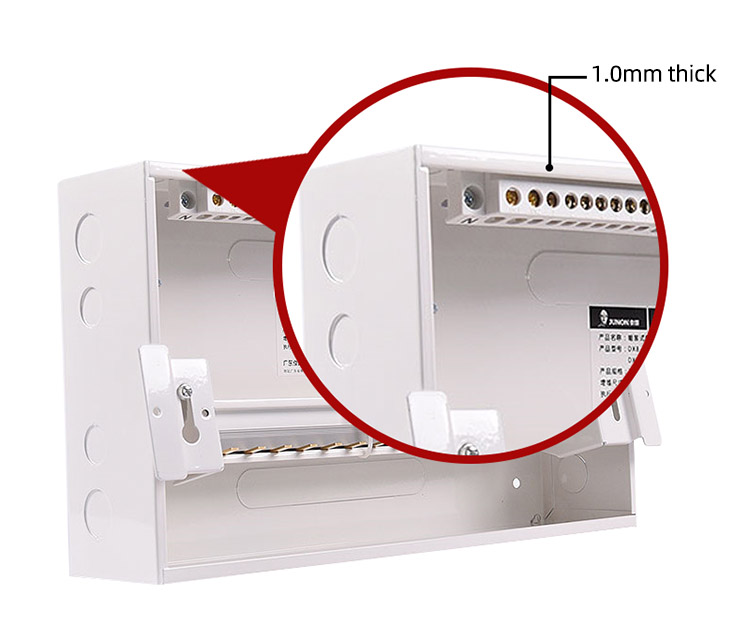

Box Base Thickness: 1.0 mm
Application Range: Power Plants
Shell Protection Grade: IP 30
MOQ: 500 pcs
Payment Terms: T/T
Open Method: Left and Right
Installation: Flush/ Surface Mounting
Specification:
A MCB distribution board (DB) is where the electrical supply is distributed from within the building. The interior of the distribution board is pre-fitted with a clip tray or DIN rail for mounting the miniature circuit breakers (MCB) and other devices.
How does it work?
A distribution board is a component of an electricity supply system which divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit, in a common enclosure.
Product Images:
Basic Info.
Product Code: V16MCB-2X13
Series: V16 series
Other sizes: 1X13,3X13,4X13,1X18,2X18,3X18,4X18
Shell Material: Steel Plate
Base Material: Cold Rolled Steel Plate
Box Base Thickness: 1.0 mm
Application Range: Power Plants
Shell Protection Grade: IP 30
MOQ: 500 pcs
Payment Terms: T/T
Open Method: Left and Right
Installation: Flush/ Surface Mounting
Specification:
| Service voltage: | AC 415 / 240 / 120V |
| Rated insulation voltage: | 600V |
| Frequency: | 50 / 60Hz |
| Ambient temperature: | 50°C |
| Covers the range from : | 1X13,3X13,4X13,1X18,2X18,3X18,4X18W,with or without main breaker |
| Incoming: | MCB, ELCB, ISOLATOR |
| JUNON V16 range single phase horizontal MCB distribution board Fantastic solution where space is an issue in small electrical cupboards Available in vertical arrangement for restricted width applications 80A continuous, 100A intermittent rated busbar Accepts MCBs from 2A to 63A and RCBOs from 6A to 45A (17.5mm wide module) 4 pole RCD incomer available, 63A-100A with earth leakage sensitivity from 30mA - 300mA;   Payment Methods: We accept payments by TT or LC or PayPal or credit card. If you require a V.A.T receipt, please request this at the time of purchase. Dispatch Time: We aim to dispatch items within 30 working days of purchase. Dispatch Method: We can use sea freight shipment for full container order or LCL shipment for some CBM order. Or we can use air freight shipment for small orders or urgent orders. Delivery Charges: The prices quoted before shipment and will send to customers to check and confirm in advance. Combined Shipping: We are happy to combine shipping on most items. Please request an invoice after purchase. This must be done before you complete your payment process. Returns: Items can be returned up to 14 days after purchase. And after we confirm it is our quality problem. They should be returned in the original packaging, together with a copy of the invoice/delivery note, and must state a valid reason for the return. Surcharge: Certain areas may be subject to a courier surcharge including (but not limited to) Contact Details: Guangdong JUNON Electrical Appliance Co.,Ltd. Add: Longsheng South Road, Leliu Town, Shunde Dist, Foshan City, Guangdong, China Tel: 0086 757 2552 1232    For the MCB distribution board, we have both single phase and three phase (MCB type or MCCB type), you may contact us freely for more information. A box famous professional manufacturer, please don't miss JUNON box. mcb electrical distribution board |
